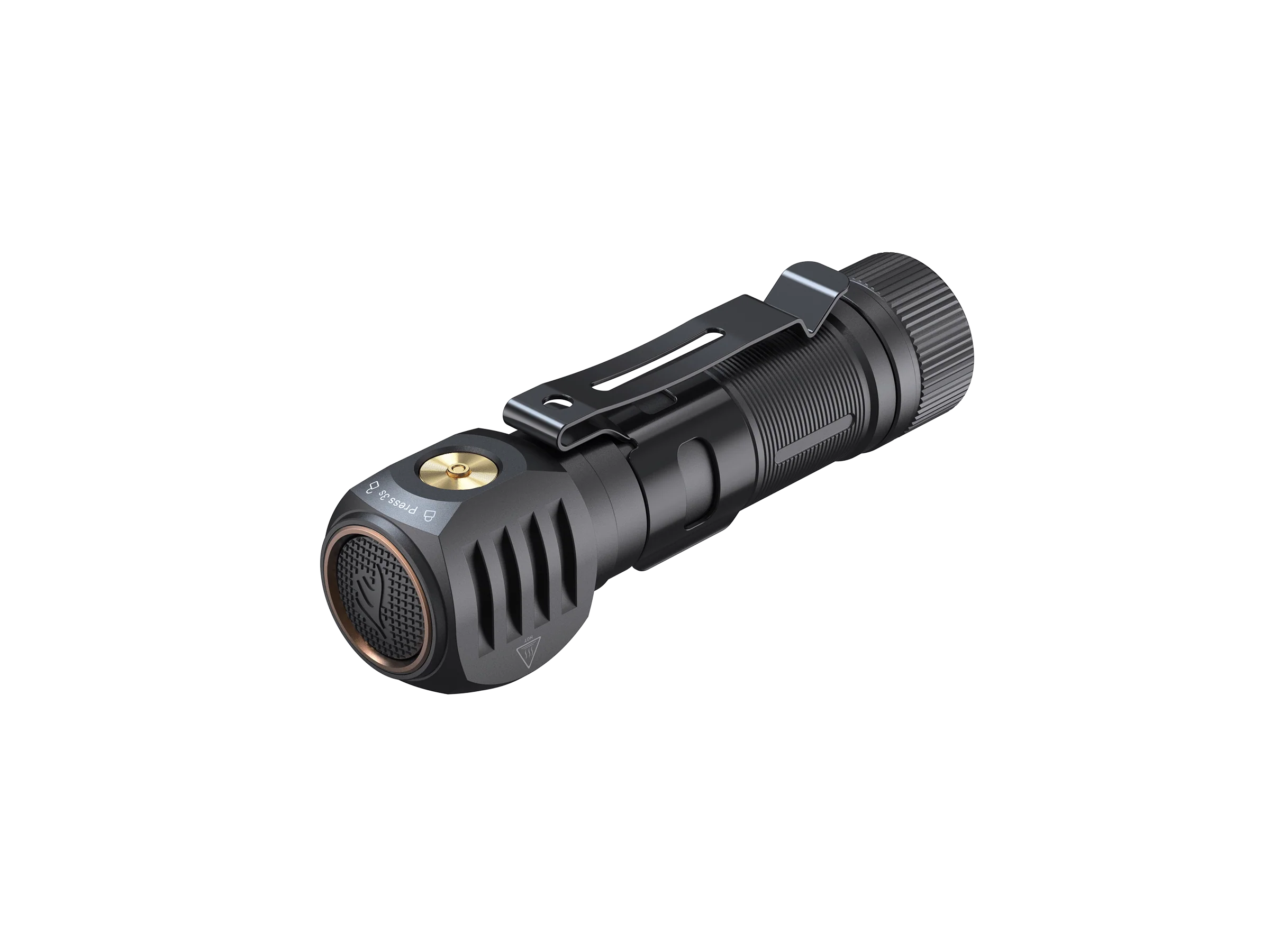

Fenix HM61R V2 Rechargeable LED Headlamp

1600-Lumen Dual-Color Headlamp with Magnetic Tailcap

• Max output: 1,600 lumens (white light)

• Dual light sources: white and red

• Power: 1 × 18650 rechargeable battery (included)

• Runtime: up to 300 hours (Eco)

• Magnetic tailcap and magnetic charging port

• IP68 waterproof rating

---

Description

The Fenix HM61R V2 is a compact, dependable headlamp built for users who want serious output without bulk. Powered by a single 18650 battery, it delivers up to 1,600 lumens of clean white light for distance and area work, plus a red light for low-signature tasks and night vision preservation.

Designed to adapt to how you work, the HM61R V2 functions as both a headlamp and a right-angle flashlight. The magnetic tailcap lets you secure it to metal surfaces for hands-free use, while the pocket clip allows it to ride as an EDC light when it’s not on your head. From campsites and trails to workspaces and emergency kits, it’s a versatile lighting tool that earns its place.

---

Built for Field Use & Everyday Carry

• Powerful white light for navigation, work, and search tasks

• Red light mode for map reading and low-profile use

• Single large side switch for simple, glove-friendly operation

• Magnetic tailcap for hands-free lighting on metal surfaces

• Converts easily between headlamp and pocket flashlight

• Long runtimes support extended trips and emergency use

• Fully waterproof and dustproof for harsh conditions

---

Specifications

White Light Outputs

• Turbo: 1,600 lumens / 2 hrs / 531 ft

• High: 600 lumens / 3 hrs / 318 ft

• Medium: 150 lumens / 12 hrs / 154 ft

• Low: 50 lumens / 35 hrs / 92 ft

• Eco: 5 lumens / 300 hrs / 30 ft

Red Light Outputs

• Low: 1 lumen / 400 hrs

• Medium: 5 lumens / 80 hrs

• Flash: 5 lumens / 160 hrs

Light & Electronics

• LEDs: Luminus SST40 (white) and 2835 red LED

• Color Temperature: ~6500K (white light)

• Controls: Single side switch

• Lockout Function: Yes

• Charging Indicator: Yes

Power

• Battery Included: Fenix ARB-L18-3400 rechargeable 18650 (3400mAh)

• Alternate Power: 1 × rechargeable 18650 or 2 × CR123A

• Charging: Magnetic charging port

• Charge Time: Approx. 4 hours

Physical

• Length: 3.98 in

• Head Diameter: 1.77 in

• Body Diameter: 1.42 in

• Weight: 3.36 oz (excluding battery)

• Waterproof Rating: IP68 (submersible to 6.5 ft for 30 minutes)

• Manufacturer: Fenix

---

What’s Included

• Fenix HM61R V2 Headlamp

• ARB-L18-3400 rechargeable 18650 battery

• Magnetic charging cable

• Headband and headband mount

• Spare O-ring

• User manual

• Warranty card

---

FAQ

Can this be used as a handheld flashlight?
Yes. The HM61R V2 removes from the headband and clips into a pocket as a right-angle flashlight.

Is the charging port waterproof?
Yes. Ensure the port is dry before charging.

How do I activate lockout mode?
With the light off, press and hold the switch for 3 seconds until the red light blinks to confirm lock or unlock.

---

A compact, adaptable headlamp built for real use. Whether it’s mounted on your head, clipped in a pocket, or stuck to steel for hands-free light, the HM61R V2 delivers reliable performance when it counts.
