1300 Lumen Trail, Work, and All-Purpose Headlamp

Quick Facts

• Max Output: 1300 lumens

• Beam Distance: 394 ft (120 m)

• Runtime: Up to 300 hours

• Light Modes: 4 spotlight, 3 floodlight, red, red SOS

• Battery: One 18650 Li-ion included (USB-C rechargeable)

• Weight: 5.54 oz with battery and headband

• Material: Aluminum and polycarbonate

---

Intro

The Fenix HM60R is a compact, all-purpose headlamp built for trail use, backcountry travel, job sites, and emergency readiness. It offers a long-throw spotlight, neutral white flood beam for better color accuracy, and a red light that preserves night vision. A stride-frequency sensor adjusts brightness automatically during running, making this a strong choice for both work and active outdoor use.

---

Built for Outdoor Work, Trail Running, and All-Purpose Illumination

• Three Light Types provide long-range visibility, close-range clarity, and night-vision preservation

• Neutral White Flood Beam delivers improved color rendering for map reading and gear checks

• Stride Frequency Sensor adjusts brightness automatically with running pace

• Hidden USB-C Charging Port with waterproof internal interface

• Large Side Switch designed for glove use in cold or wet conditions

• Compact 5.54 oz weight for comfortable long-term wear

• Compatible with CR123A lithium batteries for cold-weather backup

---

Specifications

• Max Lumens: 1300

• Max Beam Distance: 394 ft (120 m)

• Max Runtime: 300 hours

• Lighting Modes: Spotlight (4 levels), Floodlight (3 levels), Red, Red SOS

• LEDs: Luminus SST40 and XP-G2 neutral white

• Color Temperature: Spotlight approx. 5700K, Flood approx. 4500K

• Material: Aluminum and polycarbonate

• Lens: Polycarbonate

• Size: 3.35 in x 1.77 in

• Weight: 5.54 oz including battery and headband

• Battery Options: One 18650 Li-ion (included) or two CR123A lithium batteries

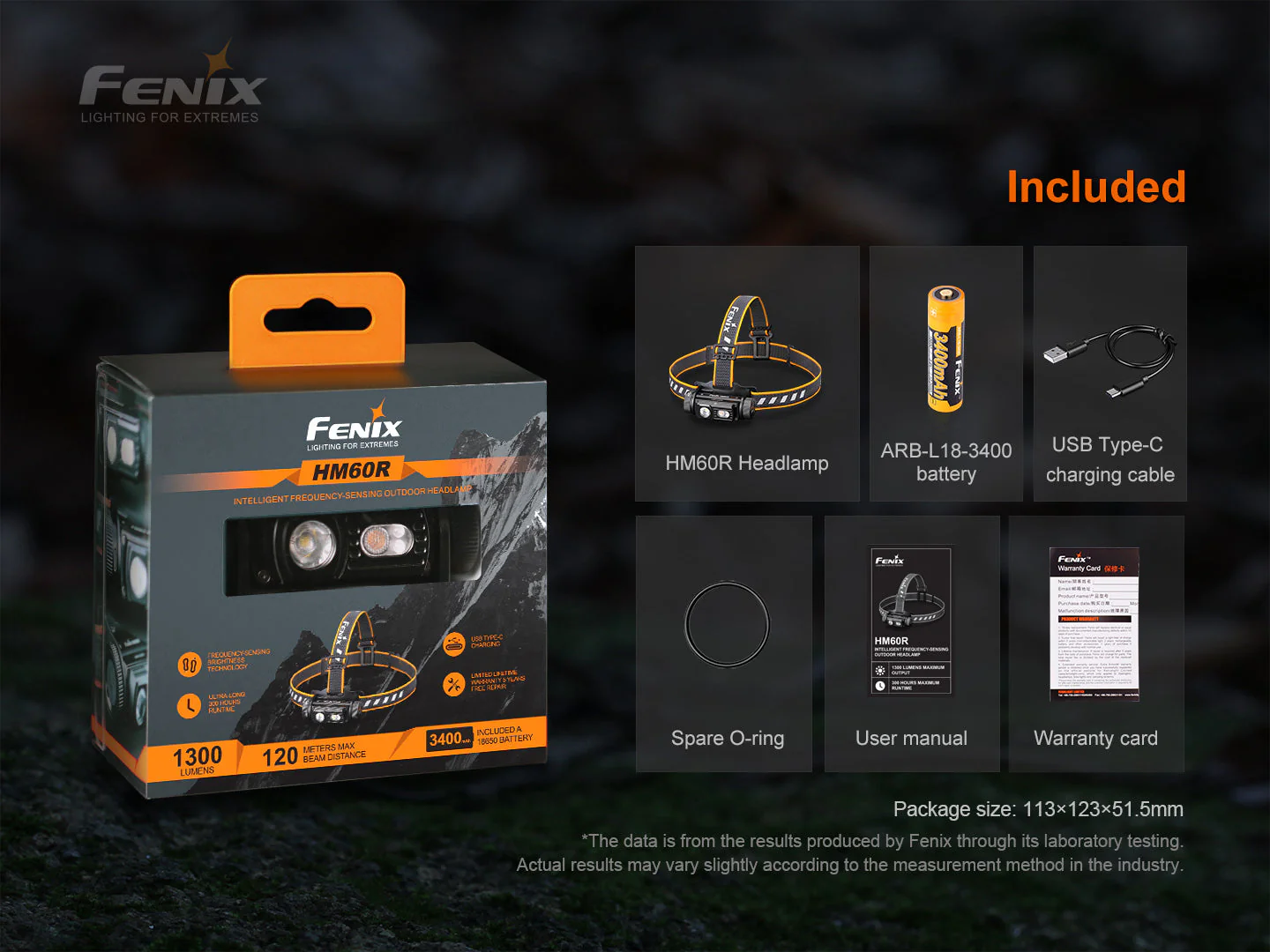

• Included: ARB-L18-3400 battery, USB-C cable, spare O-ring

• Warranty: Limited Lifetime Guarantee (Fenix Lighting USA)

Note: The ARB-L18-4000U battery is not compatible with the HM60R.

---

How to Use

1. Press the large side switch to activate the light.

2. Hold to cycle between spotlight, floodlight, and red light groups.

3. Single press to change brightness within each mode.

4. Charge by opening the rubber seal and connecting the USB-C cable to a 2A or higher wall charger.

5. For running, activate the stride frequency mode through the spotlight group.

The HM60R is ready for camp, trail, or work with simple one-hand operation.

---

FAQ

Can I charge the headlamp while the battery is inside?
Yes. It charges internally through the hidden USB-C port.

What battery types are supported?
It includes an ARB-L18-3400 Li-ion battery and also accepts two CR123A lithium batteries.

Is it suitable for running?
Yes. The stride frequency sensor adjusts brightness automatically based on movement.
