High-Capacity Off-Road Jack System for Overlanders, UTVs, and Harsh Terrain

Quick Facts

• Lift Capacity: 3,000–7,000 lbs (depending on bottle PSI)

• Lift Range: 8.5"–17"

• Jack Weight: 5.6 lbs

• Material: Aluminum / Stainless Steel

• Power Source: 20 oz CO₂ bottle (included, ships empty)

• Case: Pelican V200 Vault – crushproof, weatherproof

• Warranty: 2 years

• Standards: ASME-PASE compliant

The Phoenix DS Trail Kit delivers a complete, high-performance recovery system for off-roaders, overlanders, and UTV operators who demand reliability when the terrain gets rough. Powered by compressed CO₂, this dual-stage pneumatic jack lifts heavy vehicles quickly and safely—then stows cleanly in a hard-shell Pelican Vault case for field-ready transport.

---

Built for Trail Recovery and Remote Operations

• Serious Lifting Power: Capable of raising 3,000–7,000 lbs, depending on CO₂ pressure.

• CO₂ Performance: Includes a 20 oz Power Tank bottle and Power Shot Trigger Upgrade Kit for 7–10 lifts per fill.

• Dual-Stage Jack: Operates from 8.5" to 17" with stable aluminum and stainless steel construction.

• Field-Ready Design: Lightweight, compact, and optimized for overlanding, backcountry rescue, and competition use.

• Pelican Protection: V200 Vault case keeps your gear sealed from dust, water, and impact damage.

---

How to Use

1. Connect the Power Tank CO₂ bottle to the Power Shot Trigger.

2. Position the Phoenix DS jack under your vehicle’s lift point.

3. Engage the trigger to power the lift and raise the vehicle.

4. Extend to full height (17") as needed for recovery or repair.

5. Release pressure slowly and stow the system in the Pelican case.
   Note: CO₂ bottle ships empty. Fill at a certified refill station before first use.

---

Specifications

• Minimum Height: 8.5"

• Maximum Height: 17" (1'5")

• Lift Capacity: 3,000–7,000 lbs

• Jack Weight: 5.6 lbs

• Dimensions: 4.5"L × 4.5"W × 8.5"H

• Materials: Aluminum / Stainless Steel

• Terrain Suitability: Compact dirt (optional 8" sand base available)

• Vehicle Compatibility: All UTV and overland vehicle platforms

• Case: Pelican V200 Vault – crushproof, weatherproof, dustproof

• Warranty: 2 years

• Compliance: ASME-PASE

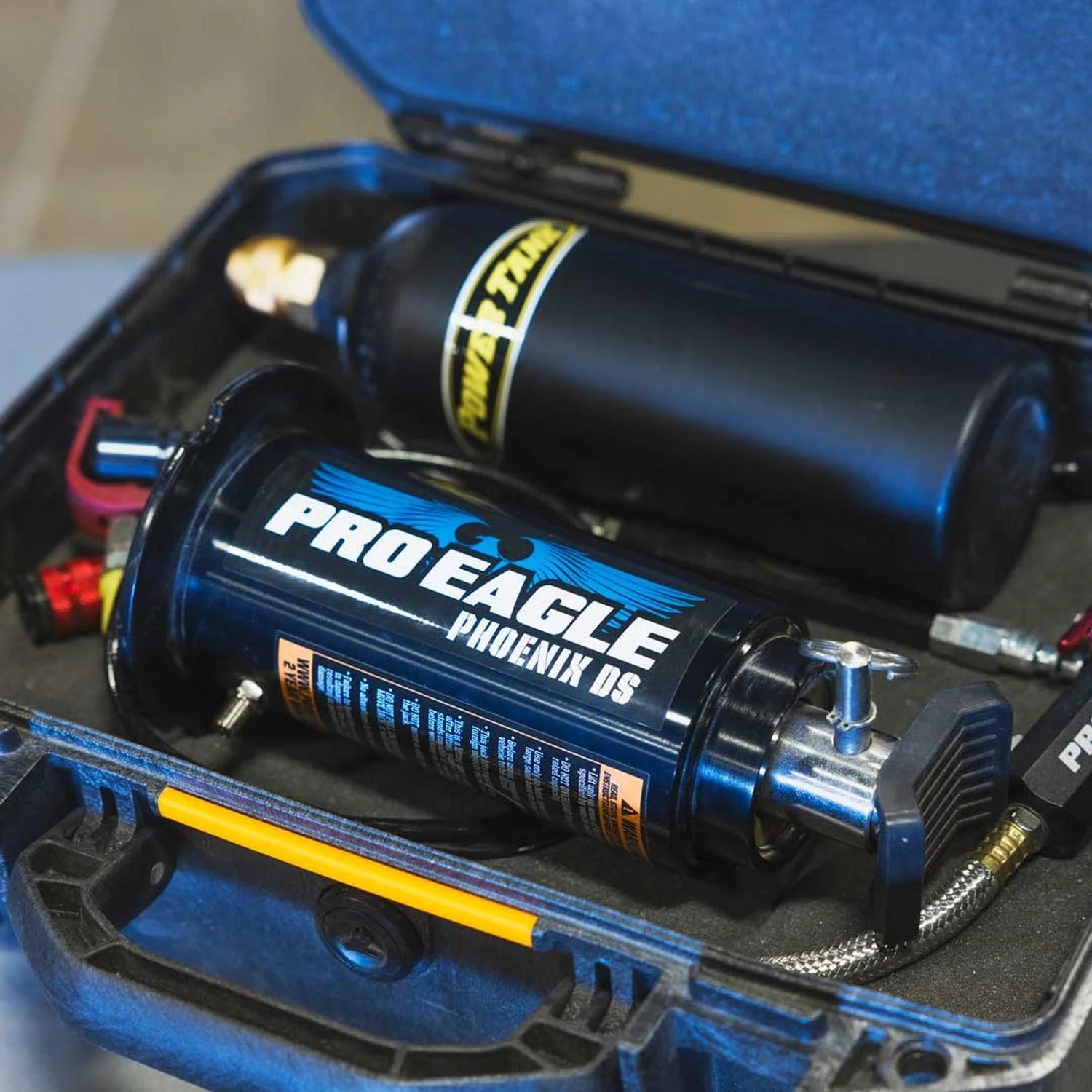

Includes:

• Phoenix DS Jack

• 20 oz CO₂ Bottle (ships empty)

• Power Shot Trigger Upgrade Kit

• Pelican V200 Vault Case

---

FAQ

Q: How many lifts can I expect per CO₂ bottle fill?
A: The 20 oz Power Tank provides approximately 7–10 full lifts depending on terrain and load.

Q: Does this kit work with larger trucks or SUVs?
A: The Phoenix DS Trail Kit is optimized for UTVs and midweight off-road vehicles. Heavier platforms should use the Pro Eagle Talon or Kratos models.

Q: Is the CO₂ bottle ready to use out of the box?
A: It ships empty for safety and must be filled at a certified CO₂ refill station before use.
